Comunello Barrier Gates

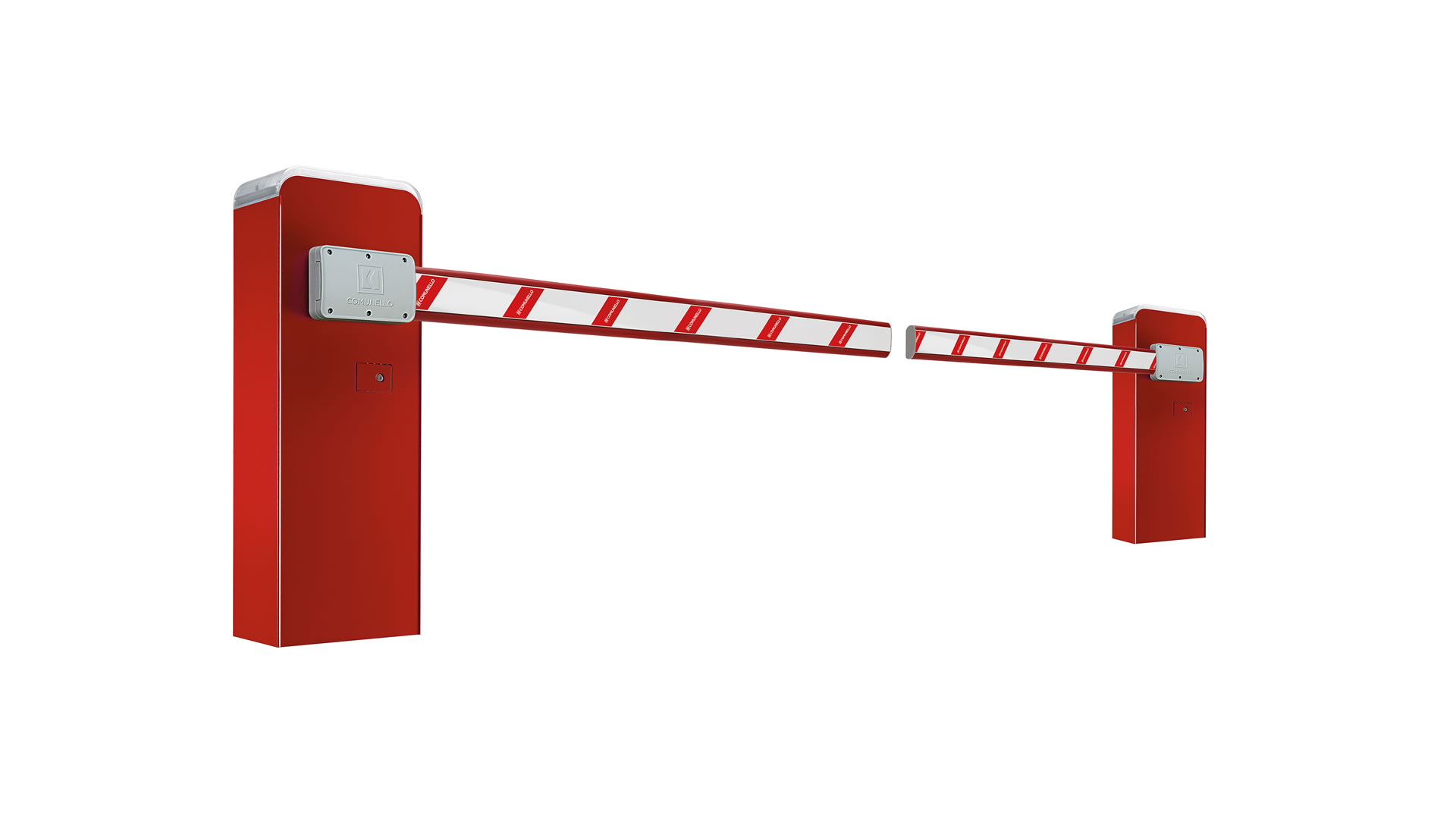

The Limit series of road barriers are available in a range of motor sizes and cover all possible road widths – 500 (up to 5m), 600 (up to 6m) and 800 (up to 8m) – or even up to 10m, 12m 16m using two actuators in dual mode. The highest levels of security and optimum performance are guaranteed by easy-to-use controls, light, robust barrier arms, a robust aluminium motor and metal gears. Anti-shock rubber is fitted.

Programming is made easy via built-in end stop and encoders. A version is available with built-in security light.

  • Predisposition for flashing internal LED.
  • Ambidextrous die-cast aluminium bar support (500/600); painted steel bar support (800).
  • Manual unlocking system with key and aluminium retractable handle.
  • Predisposition for RGB strip, LED traffic light or white light.
  • Sturdy steel frame with protective treatment.
  • Easily accessible control unit for proper programming.
  • Limit switches with micro-switch and mechanical stop (500/600); adjustable limit switches via tension plate screw (800).
  • Spring anchoring with lubricates spherical eyelety (500/600); adjustable screws allow for a more precise stop (800).
  • Single spring and 3 adjustment holes for different bar lengths (500/600); available single spring or double spring depending on size of bar/accessories.

LIMIT 500


LIMIT 600

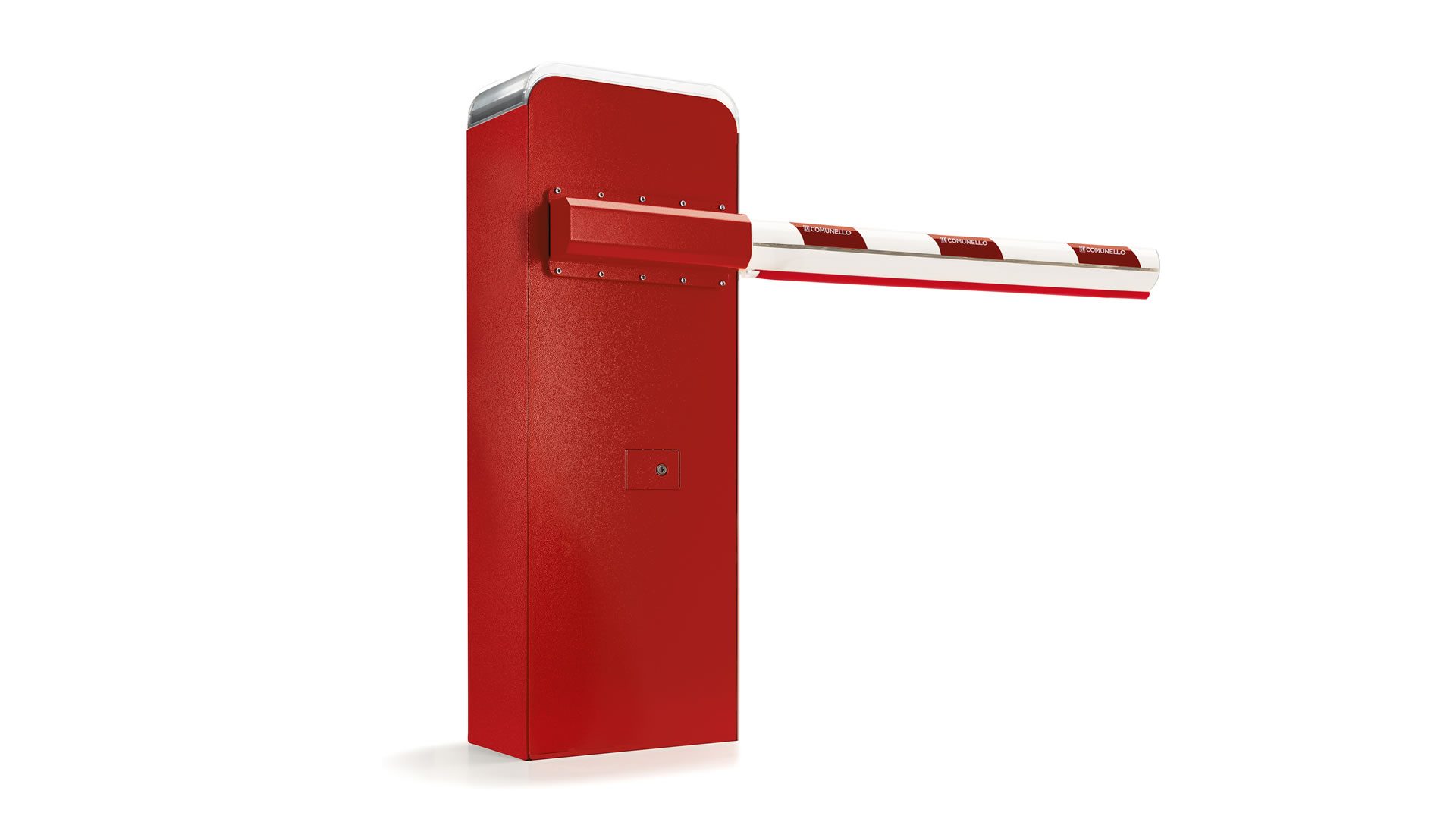

LIMIT 800


Call SML on (01603) 280164

For further information on the above product.
